Power 5v - 220v Surge Protector For Cctv Camera Security Camera Surge Protection

Name: Power 5v 220v Surge Protector For Cctv Camera Security Camera Surge Protection
Brand: TSTLP
Price: 1 USD

Quality Power 5v - 220v Surge Protector For Cctv Camera Security Camera Surge Protection for sale

Model Number : TS-VCP2

Certification : CE Compliance

Place of Origin : Guangdong,China

Brand Name : TSTLP

MOQ : Negotiable

Price : Negotiable if good quantity

Packaging Details : By standard export box/carton

Delivery Time : Around 7 working days upon receipt of payment

Payment Terms : 100% TT / LC / Western Union / MoneyGram / WeChat Transfer / Alipay / Wanda Money Transfer / Cash ahead

Supply Ability : 2000 sets/month

Un(Power) : 12V / 24V / 48V / 220V

Un(Video) : 5V / 48V

In(Power) : 5kA

Video Ports : BNC / RJ45

Indication : Green / Red light

Application : Surveillance Devices

Contact Now

Power 5v - 220v , control 12v , video 5v security camera surge protection

TS-VCP2 2 in 1 security camera surge protection is for protection of power lines & video lines of surveillance devices from surge damages, such as surveillance video receiver and camera etc. And it's widely applied in bank surveillance systems(CCTV system), residential security systems,surveillance devices or school security corporation & roads

Technical Spec 1 of TS-VCP2 2 in 1 surge protector

Model Nr	TS-VCP2
Protection lines	Video Line (BNC)	Video Line (RJ45) for option	Power Supply line
Un	5V-	48V-	220V-	48V-	24V-	12V-
Iimp	0.5KA	0.5KA	---	---	---	---
In	2.5KA(line-shield)	2.5KA (line-shield)	5KA	5KA	5KA	5KA
In	5KA (shield-PG)	5KA (shield-PG)	5KA	5KA	5KA	5KA
Imax	5KA (line-shield)	5KA (line-shield)	10KA	10KA	10KA	10KA
Imax	10KA (shield-PG)	10KA (shield-PG)	10KA	10KA	10KA	10KA
Up	≤25V (line- shield)	≤130V(line- shield)	≤950V	≤450V	≤300V	≤240V
Up	≤25V (shield-PG)	≤130V (shield-PG)	(L-N)	(L-N)	(L-N)	(L-N)
Up	≤25V (line- shield)	≤145V(line-shield)	---	---	---	---
Up	≤25V (shield-PG)	≤145V (shield-PG)	---	---	---	---
tA	≤1ns (line- shield)	≤1ns (line- shield)	≤25ns	≤25ns	≤25ns	≤25ns
tA	≤100ns (shield-PG)	≤100ns (shield-PG)	≤25ns	≤25ns	≤25ns	≤25ns
fG	10MHz	165MHz	---	---	---	---
Vs	16Mbits/s	100Mbits/s	---	---	---	---
Series impedance	---	---	---	---	---	---
Insertion lose	0.4dB	0.4dB	---	---	---	---
Connection (input/output)	BNC socket/plug	RJ45 socket/plug	Screw

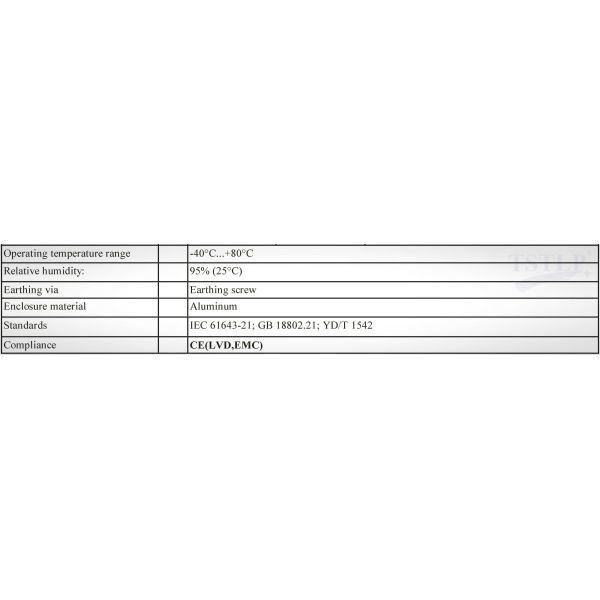

Technical Spec 2

Power 5v - 220v Surge Protector For Cctv Camera Security Camera Surge Protection

Character

Power 5v - 220v Surge Protector For Cctv Camera Security Camera Surge Protection

Installation Diagram for reference

Power 5v - 220v Surge Protector For Cctv Camera Security Camera Surge Protection

PDF Catalog Download - TS-VCP2 2 in 1 SPD.pdf

PDF Catalog Download - TS-VCP3 3 in 1 SPD.pdf

PDF Catalog Download - TS-VCP3N 3 in 1 SPD.pdf
